X99 BD4 LGA 2011-3 XEON X99 Motherboard Supports Intel E5 2640 2666 2670 2696 2678 V3 V4 DDR4 RECC NON-ECC NVME NGFF

If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

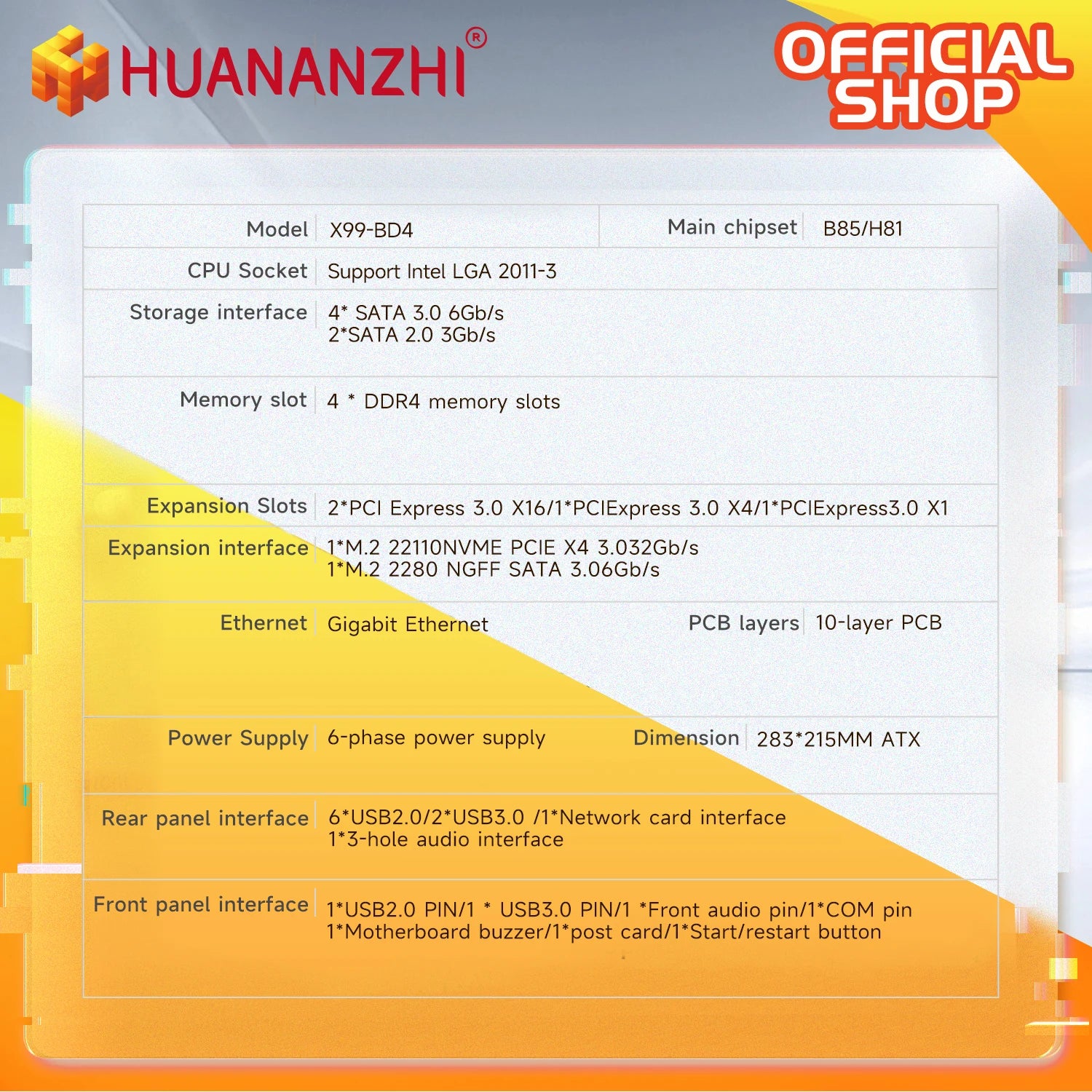

Specifications:

Model：HUANANZHI BD4 Motherboard
CPU Socket：Support Intel 2011-3 Processors
Main chipset: B85 ... Etc chipset shipped randomly
Ｍemory Socket：4*DDR4 Memory，Maximum Memory Capacity 128G
Ｍemory Standard：Support Dual channel DDR4 2400/2133/1866MHz

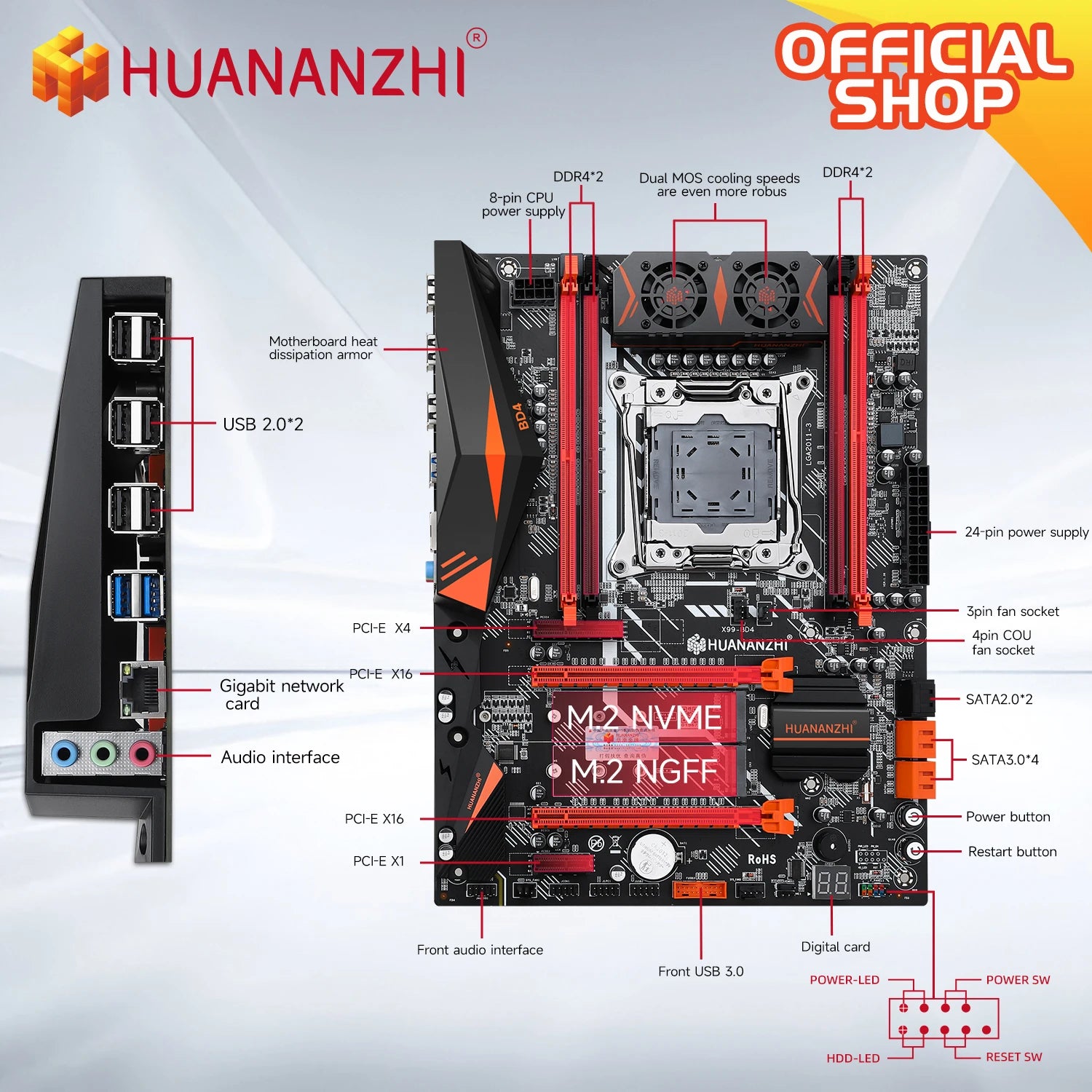

SATA Inderface：4*SATA3.0 interface，2*SATA2.0 interface
Extended Inderface：IO：6*USB2.0，2*USB3.0，1*Gigabit Ethernet Card，3*3.5MM Audio interface；Expansion pin：1*9pin USB2.0，1*19pin USB3.0，1*Front audio output pin
Expansion Slots：2*PCI Express3.0X16，1*PCI Express3.0X4，1*PCI ExpressX1，1*M.2 NVME(X4 3.0)，1*M.2 NGFF(SATA3.0)
Soud Track：5.1
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：4
PCB layer：10 layer PCB，6Phases power supply

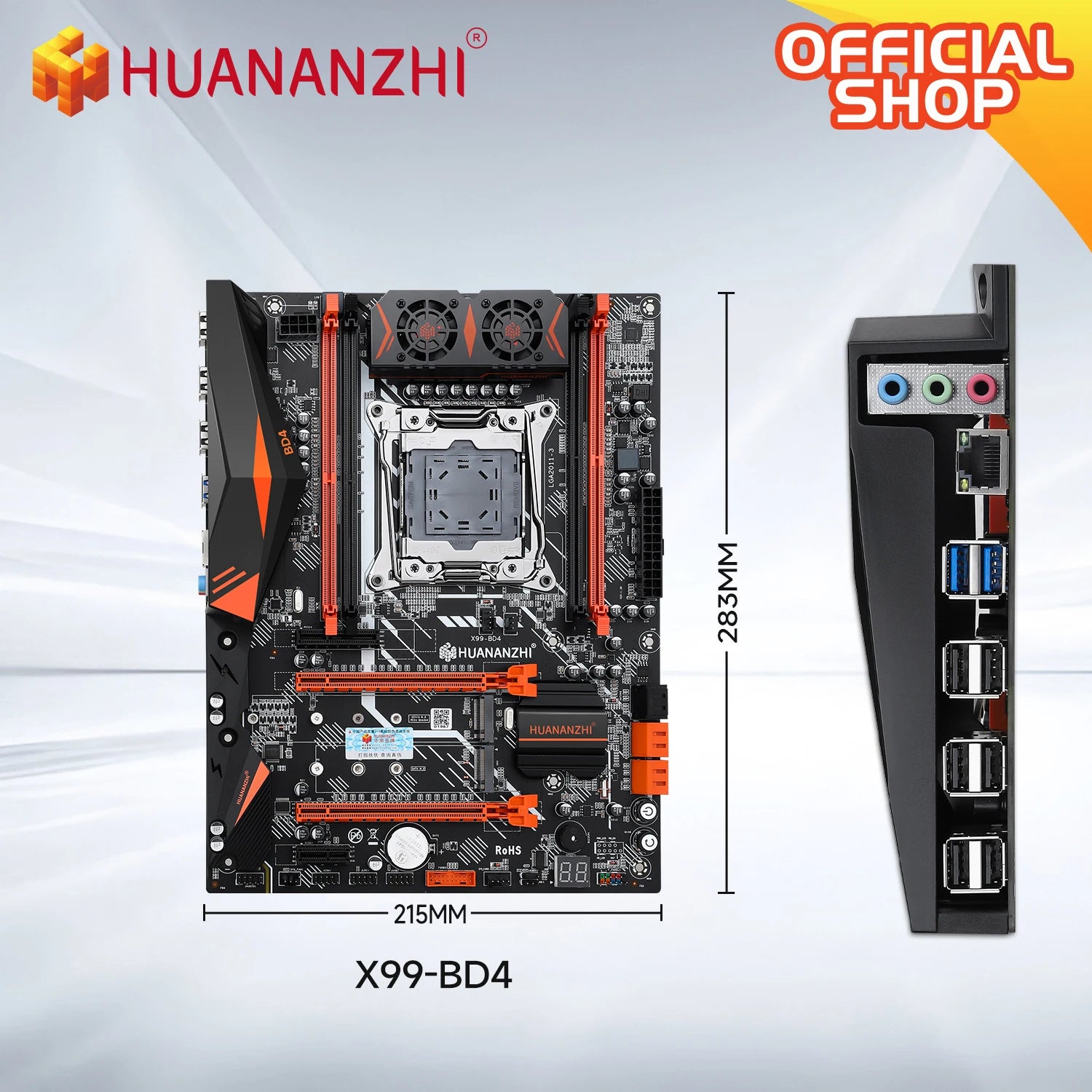

Dimension：283*215MM ATX

Note:

1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2.Please allow 1-3mm differs due to manual measurement.
3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5.We show photos of motherboard, pictures are for reference only, subject to our available products.
6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
7.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!

Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
