E5 MR9A V1.0 X99 Motherboard Support LGA 2011-3 Xeon E5 V3 V4 CPU Processor DDR4 RAM Memory ATX NVME M.2 USB3.0
E5 MR9A V1.0 X99 Motherboard Support LGA 2011-3 Xeon E5 V3 V4 CPU Processor DDR4 RAM Memory ATX NVME M.2 USB3.0
Couldn't load pickup availability
• High Compatibility :The MACHINIST E5 MR9A V1.0 X99 motherboard is compatible with Intel Core processors, ensuring a seamless computing experience.
• Robust Chipset :Equipped with an Intel B85 chipset, this motherboard delivers superior performance and stability for your desktop setup.
• Advanced Storage Interface :Featuring an M.2 (NVMe) storage interface, this motherboard supports quick and efficient data transfer rates.
• Multiple Connectivity Options :With one RJ45 port for LAN and another for USB 3.0, this motherboard provides ample connectivity options for your devices.
• High RAM Capacity :With a maximum ram capacity of 128 GB, this motherboard allows for smooth multitasking and fast data processing.
• Quality Certified :This motherboard has obtained ROHS quality certification, guaranteeing its safety and reliability.

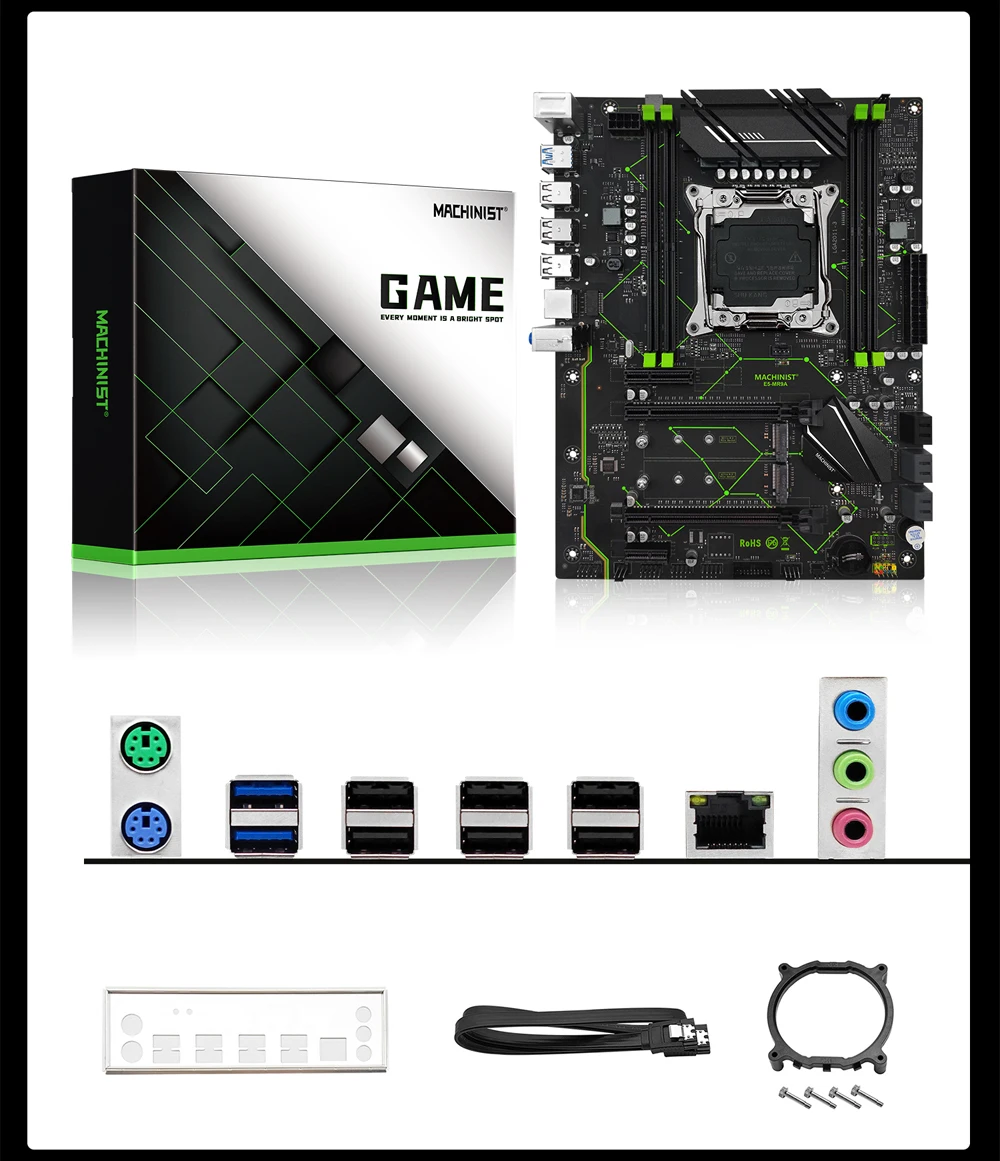

> > Package includes:
Motherboard: MACHINIST E5 MR9A V1.0 LGA 2011-3 Motherboard *1.

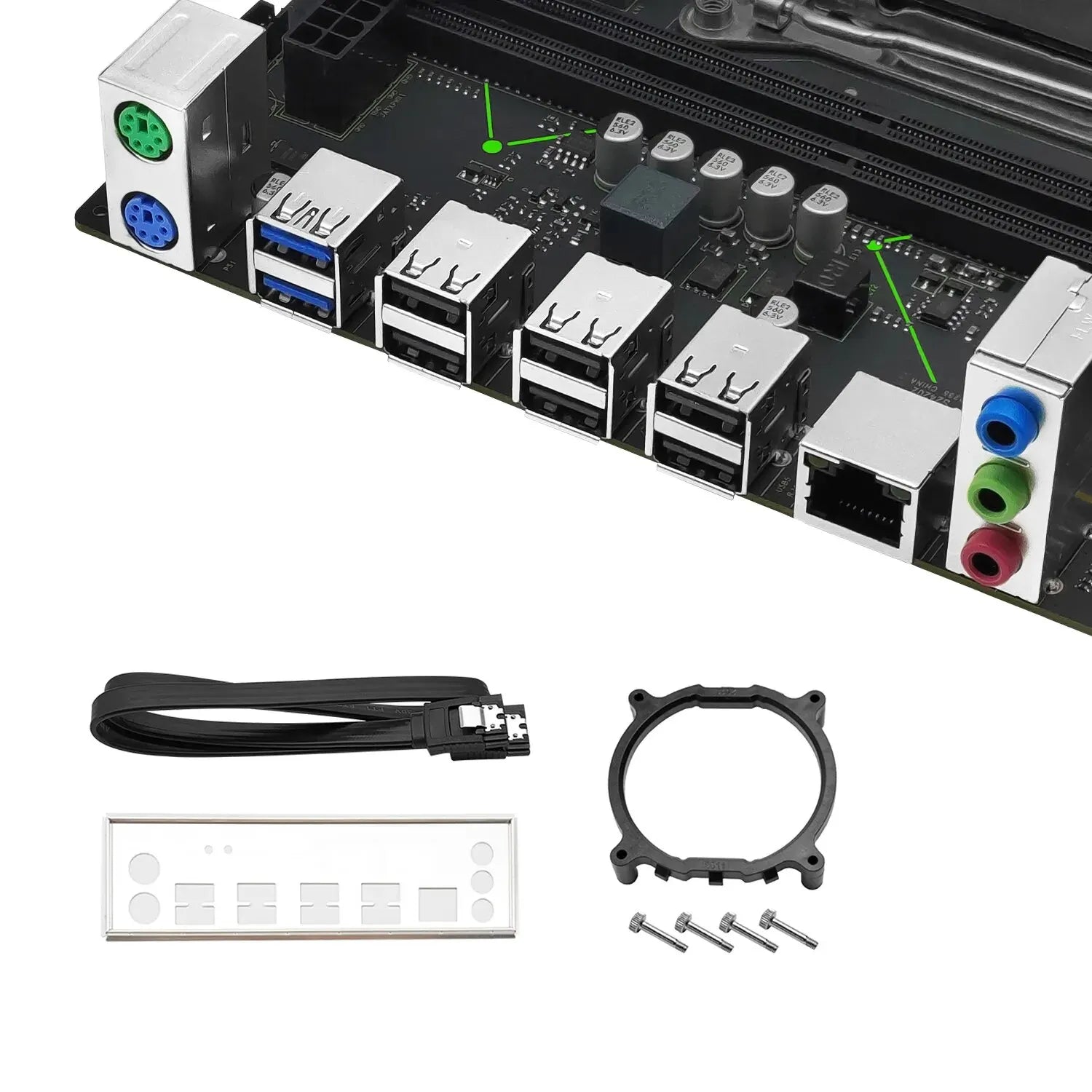

Complimentary accessories: I/O shield *1, SATA cable *1, radiator bracket.
(Packaging is carried out after manual testing before sending. Please understand if there are any gifts missing!)
> > Motherboard information:
Brand :MACHINIST.
Mainboard model :E5 MR9A V1.0.
Processor: Support Intel LGA2011-3-pin series processor.
Chipset :B85/C226 Chipset.
> > Memory:
Technology: Quad-channel DDR4. Supports 2133/2400/2666/3200MHZ.
Maximum capacity 128GB (32G x 4).
Memory slot :4 x 288 PIN DDR4.
Supported memory type: The memory type supports DDR4 desktop and server memory.
(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)
>> Post I/O:
PS/2: one KB port + one MS port.
USB ports :6 USB2.0,2 USB3.0.
Ethernet: one Gigabit network adapter.
Audio :1 (Mic-in, Line-out, Line-in).

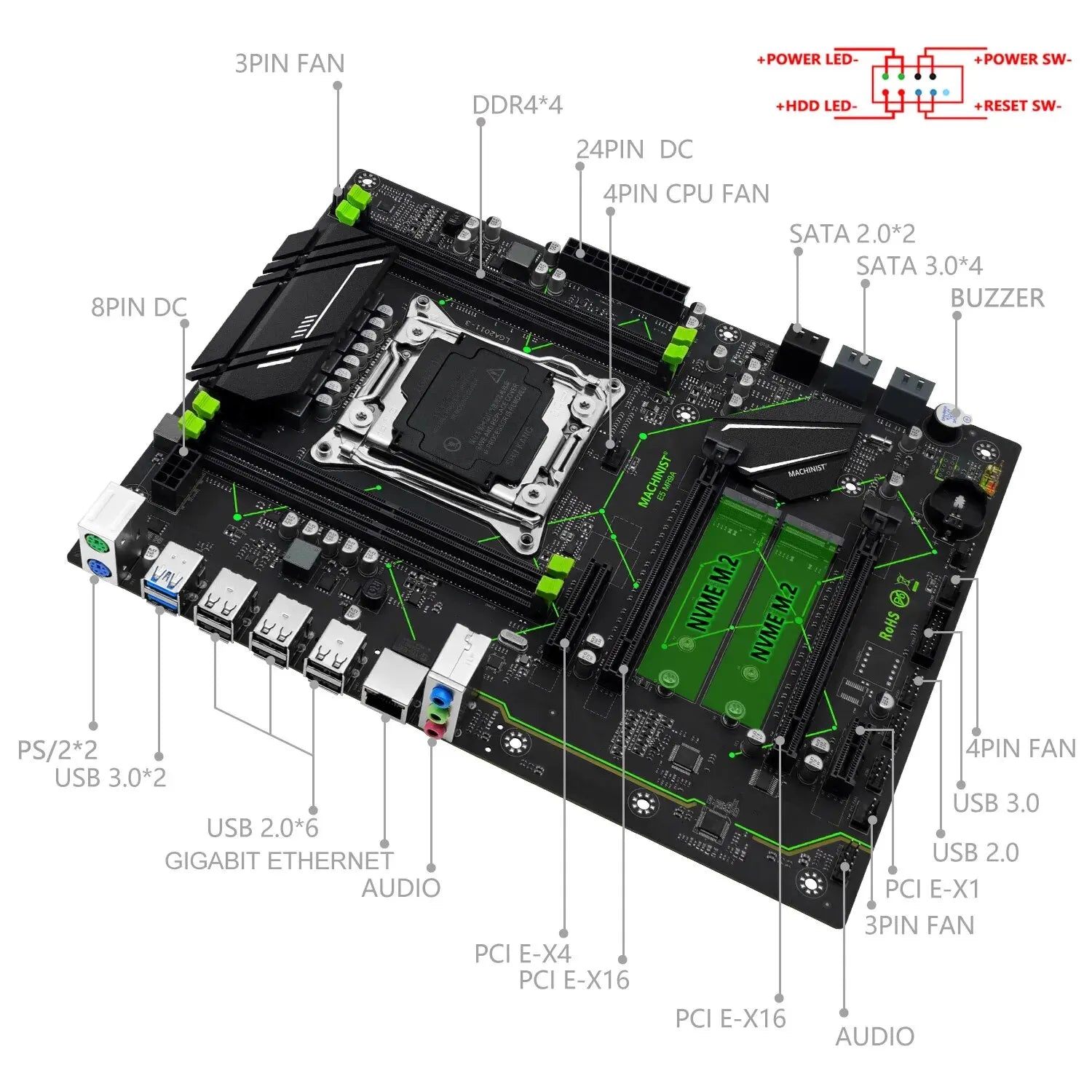

>> Internal connectors:
PCIe: Two PCIe 16x, one PCIe 4x, and one PCIe 1x.
F_PANEL: 1 2x5Pin pin.
SATA ports: 6 (4 SATA2.0; 2 SATA3.0);
1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet;
M.2 Ports: Two PCIE ports.

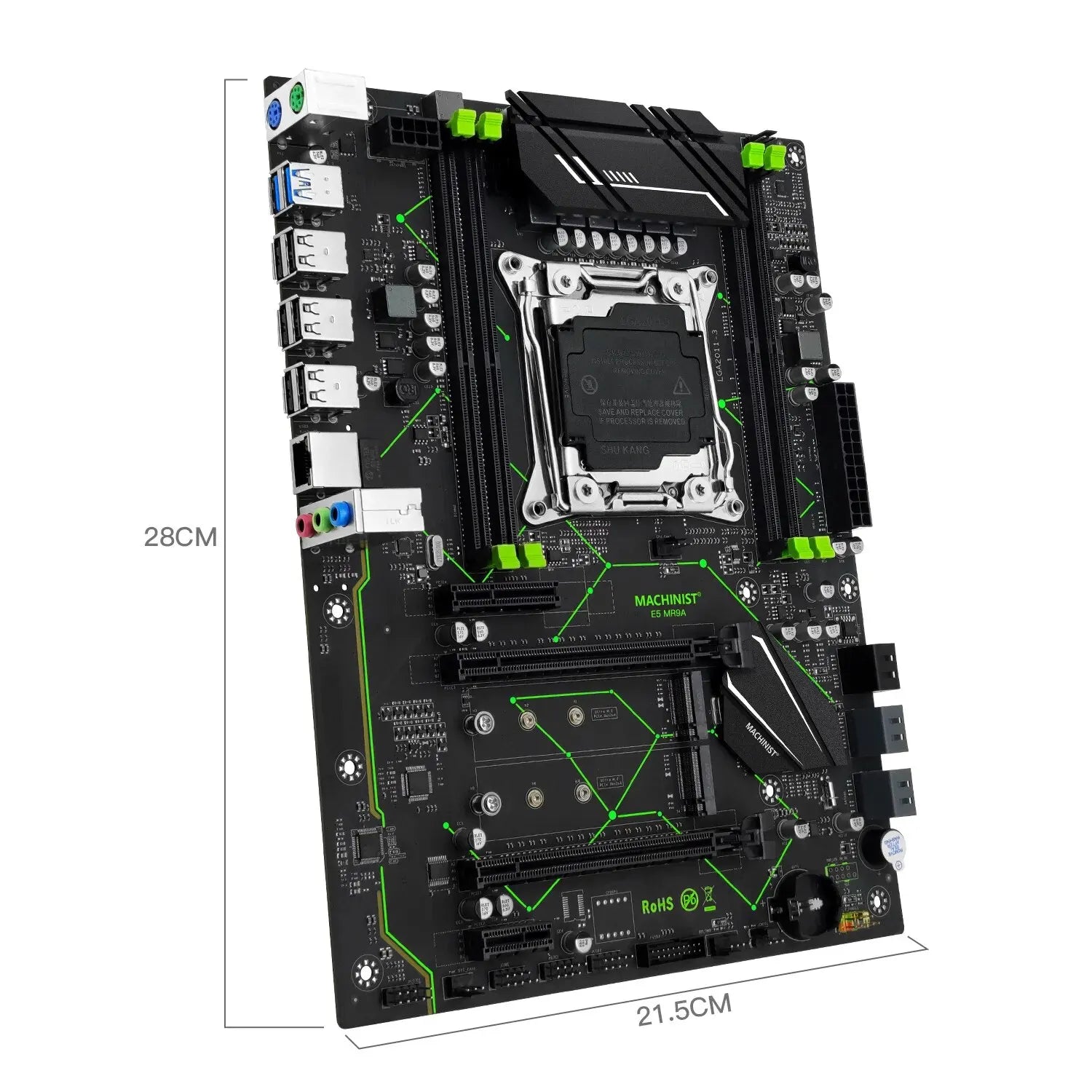

Dimensions :280mm * 215mm.
Motherboard weight (including packaging) : Approx. 1.1 kg
>> Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.
> >For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding.
> >Note:
1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform. (at least 500w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
