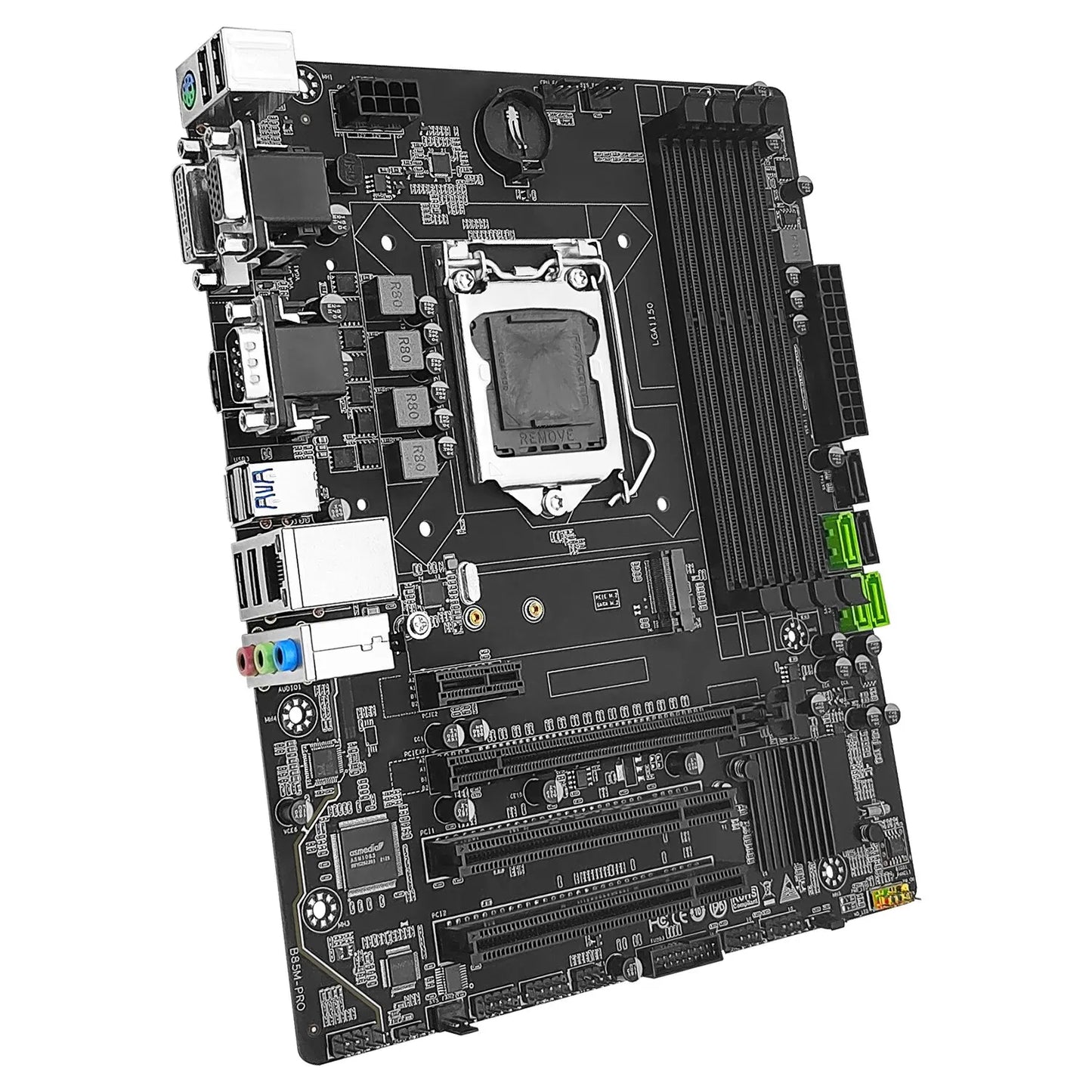

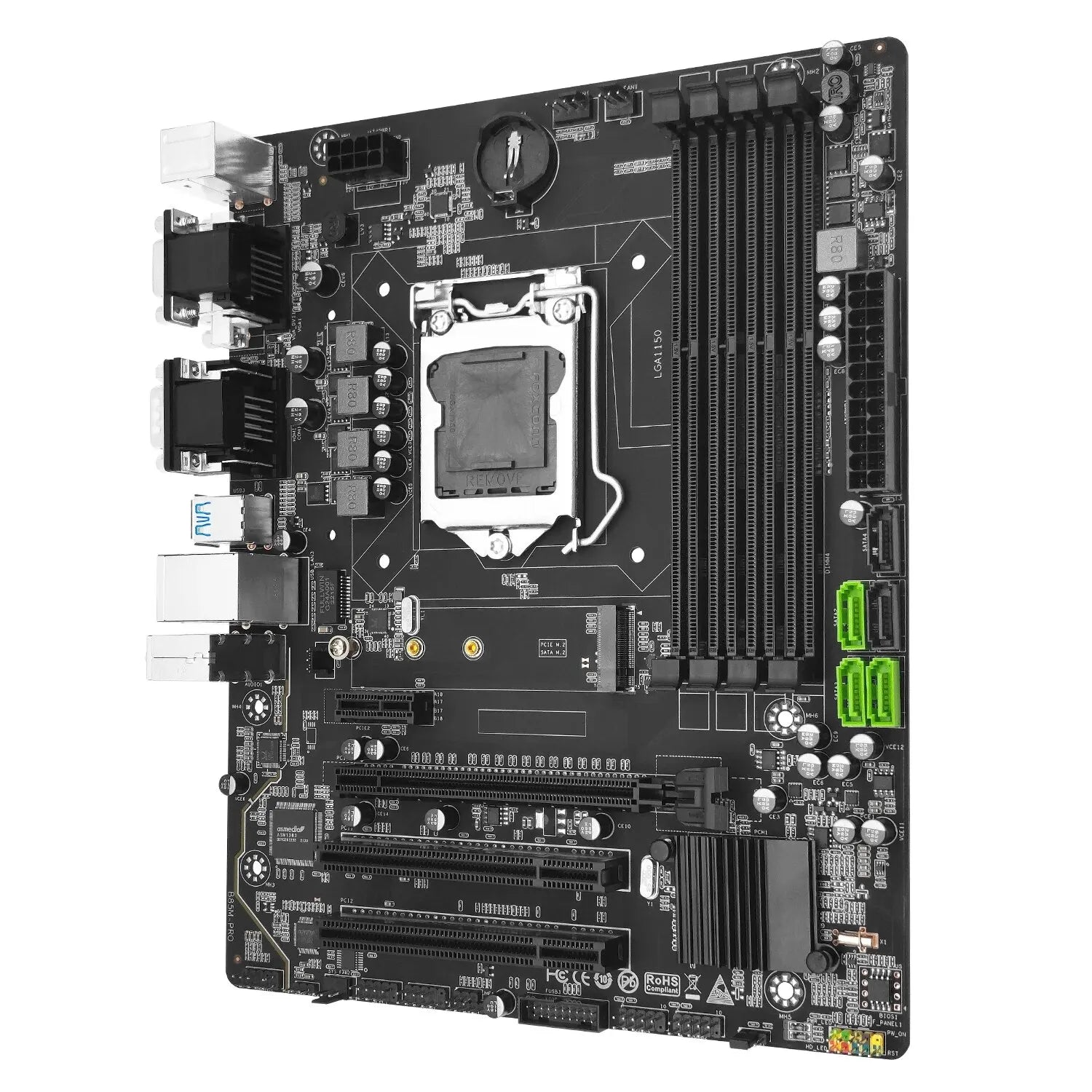

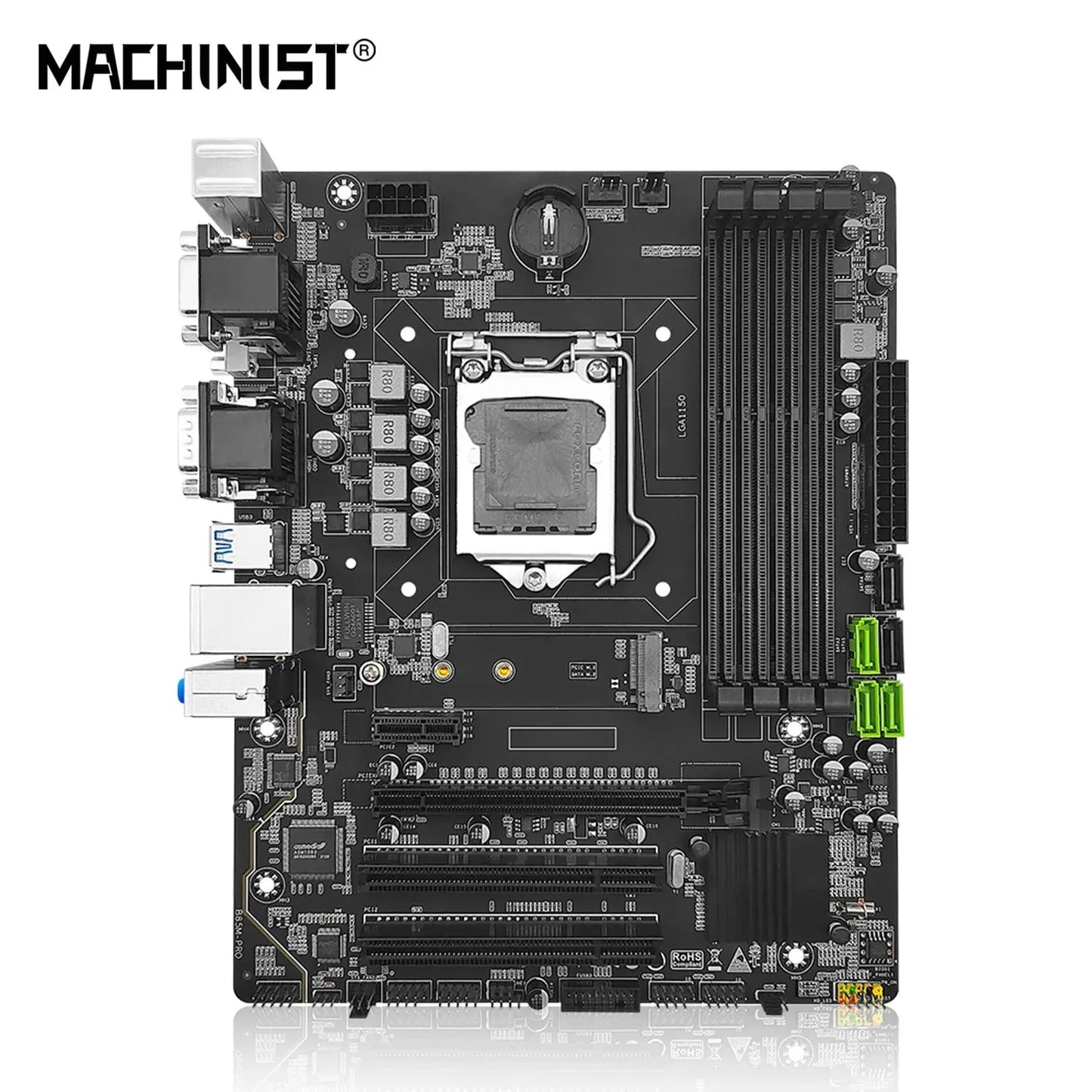

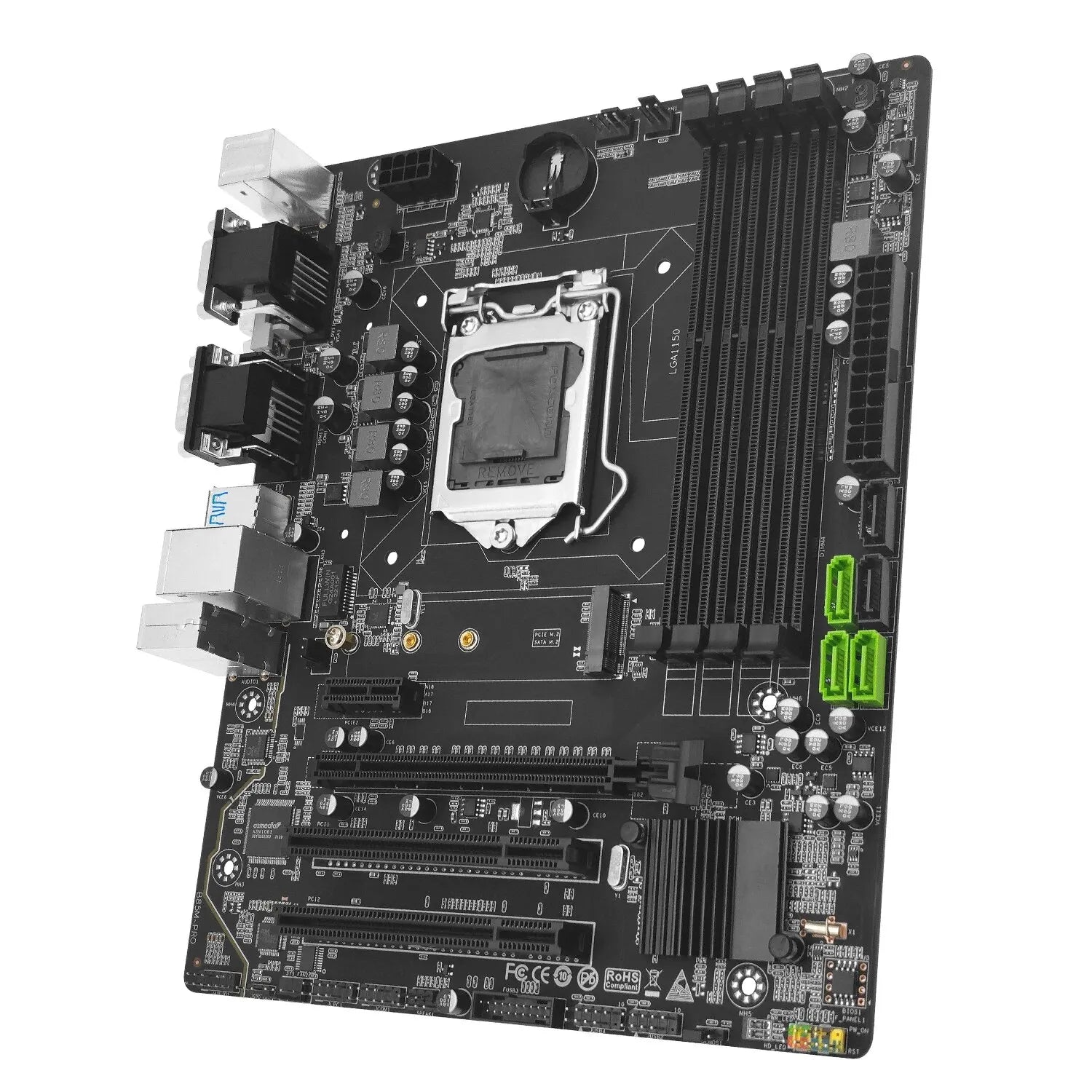

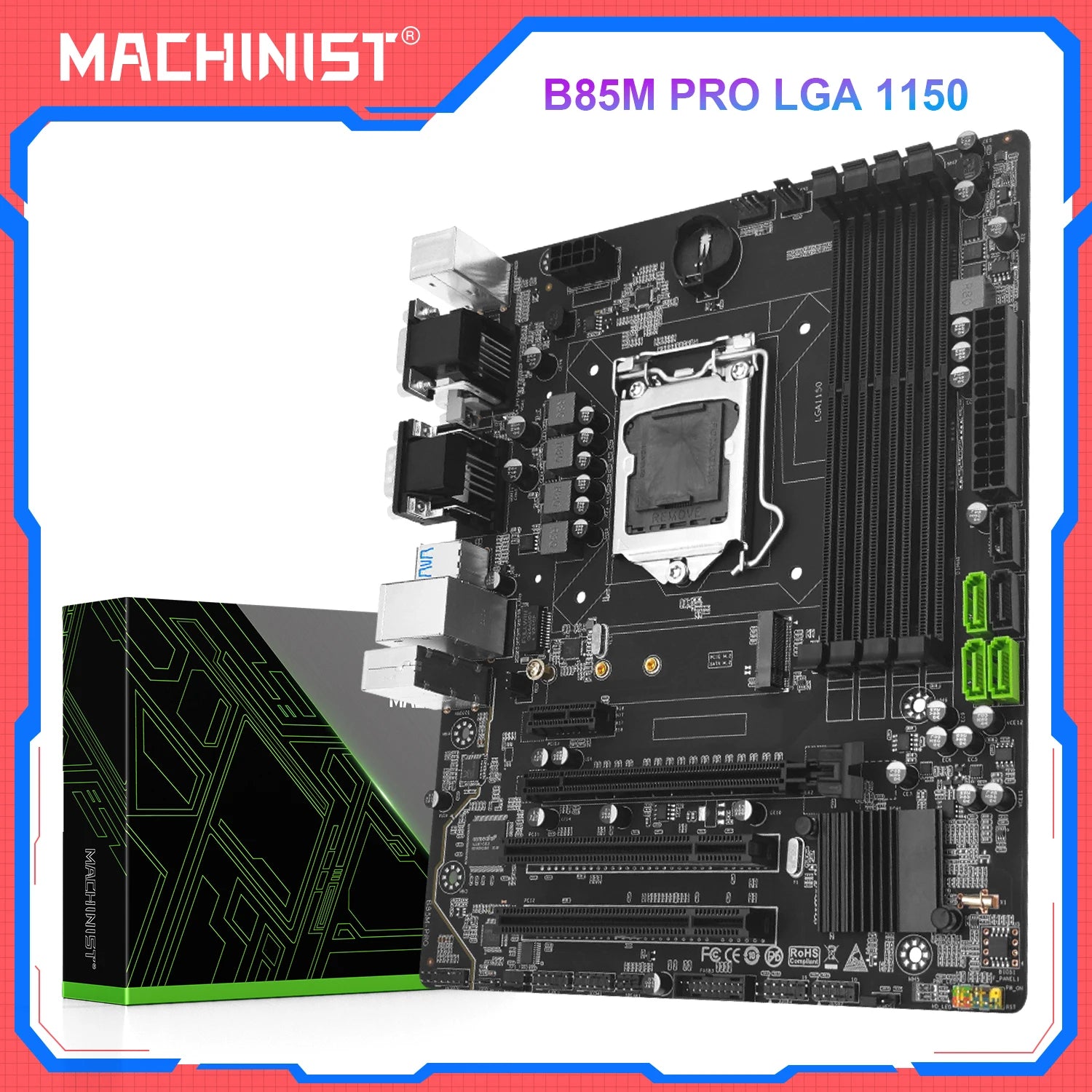

B85M PRO Motherboard Support LGA 1150 Intel Core I3 I5 I7 CPU DDR3 RAM Memory M.2 Slot

>> The package contains:

Motherboard: MACHINIST B85M-PRO LGA 1150 motherboard *1.

Complimentary accessories: I/O shield *1, SATA cable *1. All items will be manually tested before packaging. Please understand if any complimentary items are missing! .

>> Motherboard information:

Brand :MACHINIST.

Motherboard model :B85M-PRO.

Processor: Supports Intel corei7 /i5 / i3 Celeron/Pentium/E3 lga1150 pin series processors.

Chipset :B85 Chipset.

> > Memory:

Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866MHZ.

The maximum capacity is 32GB (8G x 4).

Memory slot :4 * 240 PIN DDR3.

Supported memory types: Only DDR3 desktop memory is supported.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.

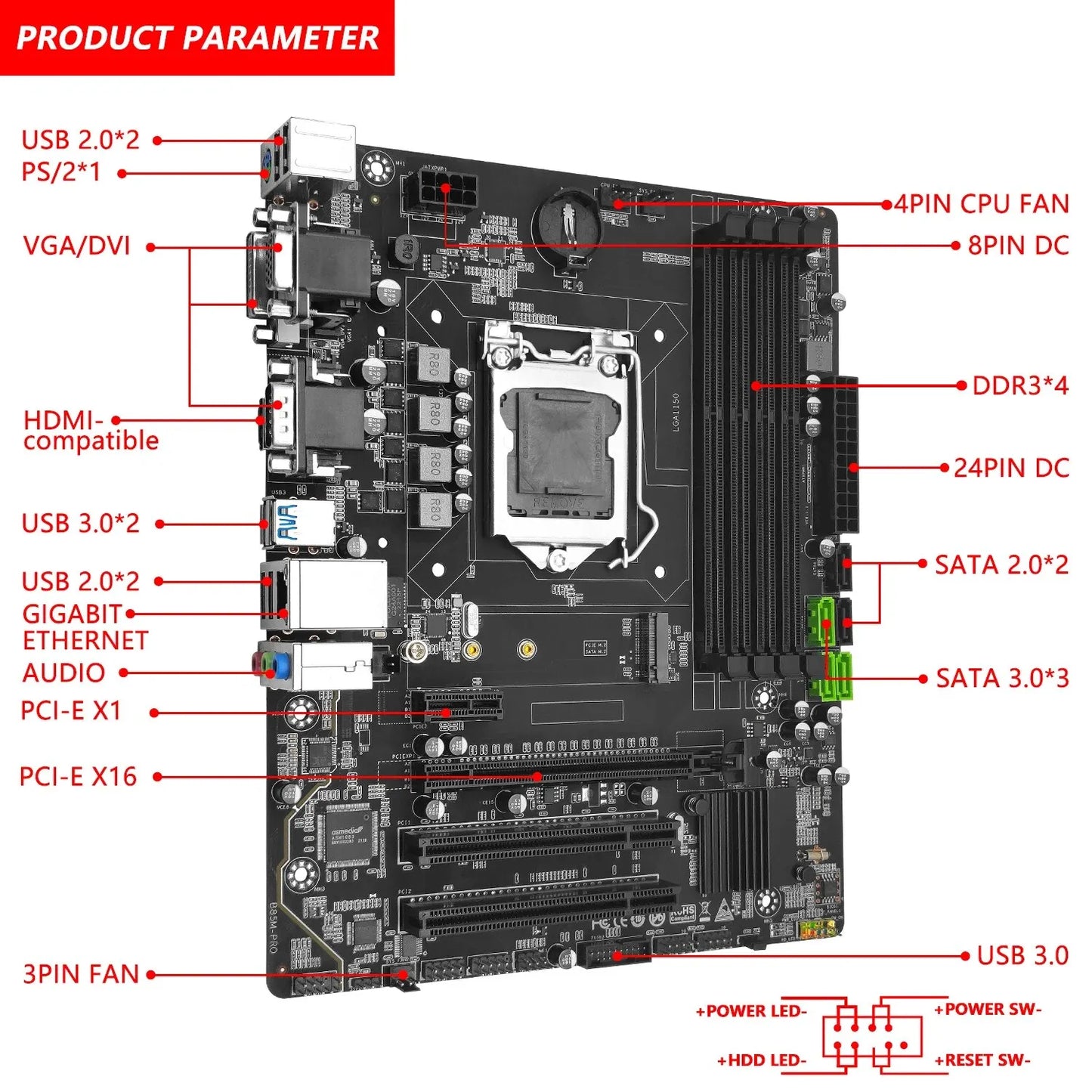

>> Post I/O:

PS/2: 2-in-1 interface.

USB interfaces :2 USB3.0 ports,4 USB2.0 ports.

Display interfaces: 1 HDMI, 2 VGA, 1 DVI.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

>> Internal connector:

PCIe: 1 PCIe 16x, 1 PCIe 1x, 2 PCIe interfaces.

F_PANEL: 1 2x5Pin.

SATA ports: 4 (2 SATA2.0:3 SATA3.0);

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

M.2 interface: 1 NVME interface.
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
